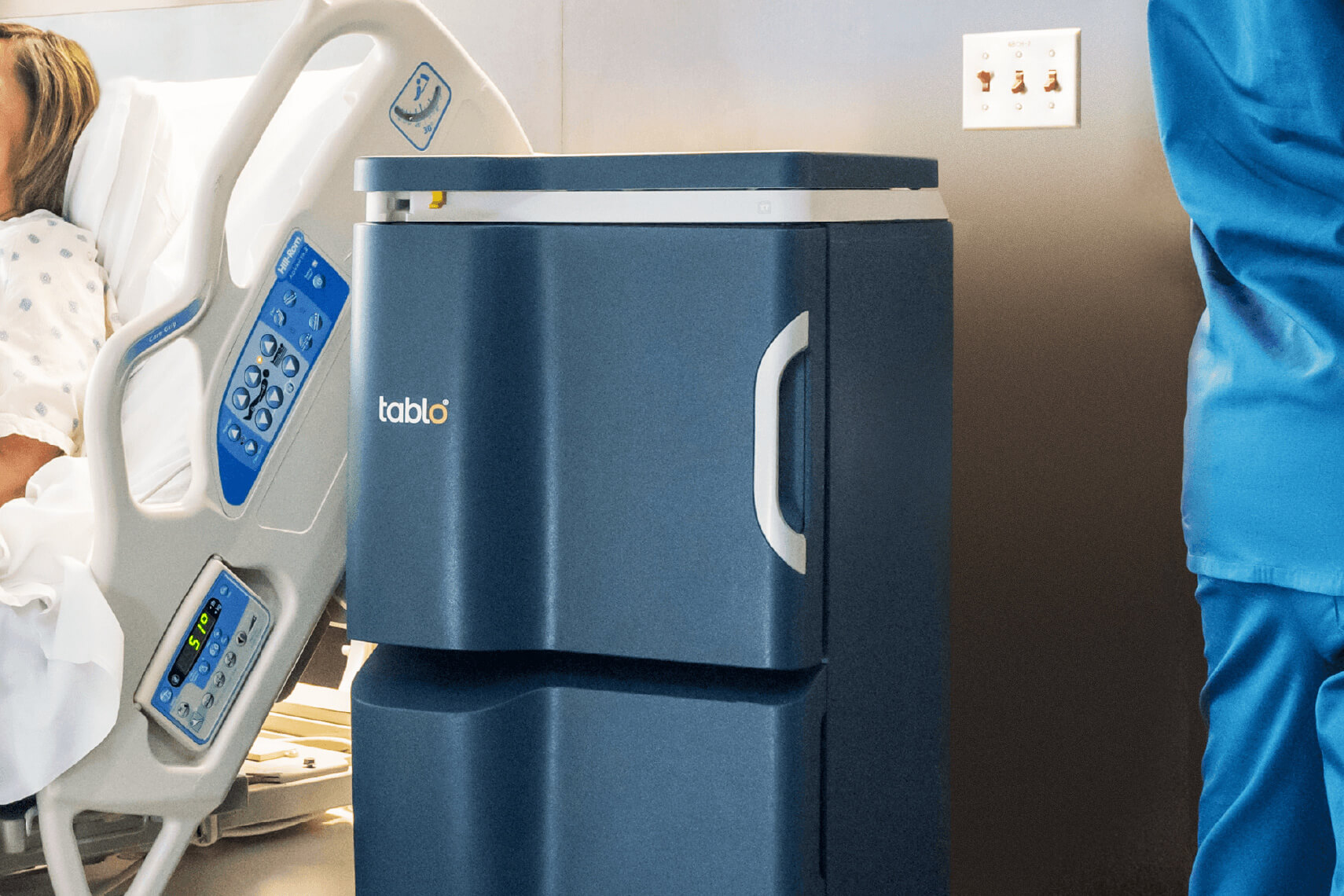

Tablo Hemodialysis System
A first-of-its-kind device covering 95% of dialysis treatments – with no additional infrastructure
Tablo Hemodialysis System
A first-of-its-kind device covering 95% of dialysis treatments – with no additional infrastructure
The Tablo® Hemodialysis System is changing dialysis.
Dialysis just got smarter, easier, and quantifiably better
All-in-one technology
An acute dialysis solution for the entire enterprise
A first-of-its-kind, fully integrated system, Outset Tablo treats patients across the care continuum and clinical spectrum.
Easy to learn & use
Train your staff in just hours
Gone are the days of traditionally complex processes in dialysis machine setup, teardown, and ancillary support. Outset Tablo keeps it simple and automated to support rapid training while maintaining high user satisfaction.
Connected & intelligent
Streaming data from the device to the cloud
With two-way wireless data transfer and cloud-based monitoring and reporting, Outset Tablo automates documentation and streamlines treatment management, freeing staff from manual data entry.
Outset Tablo
ADDITIONAL FEATURES
Outset Tablo is more than a dialysis machine. It’s an enterprise solution with a robust ecosystem of digital tools.
Simple touchscreen interface
Access Tablo data anywhere – on TabloHub®
Remote monitoring
Automate documentation with EMR Connect
Discover the clinical versatility and customer support that ground Tablo in practice.
Clinical Evidence
Services
Using just tap water, an outlet and a drain, Tablo makes it simple to perform dialysis anytime, anywhere.
Tablo cartridge
Pre-assembled Tablo cartridge minimizes setup and takedown time
By eliminating manual steps of stringing the dialysis machine, the Tablo cartridge streamlines treatment management and reduces opportunities to introduce contamination. Advanced sensors automate much of the setup and treatment management, creating efficiency for healthcare providers and offering added simplicity for patients, who are now freed from ‘snapping and tapping’ with the system’s automatic air removal from tubing.
Dialysate on-demand
Purify water and generate dialysate on-demand without batching or bags
With just tap water, an electrical outlet and a drain, Tablo delivers multiple dialysis modalities. Its unique internal water purification system eliminates the need for costly and space-consuming water treatment-related rooms, equipment and supplies.
TabloCart
TabloCart Enhanced maneuverability with prefiltration or storage drawer options
TabloCart is built with 360-degree rotating wheels and directional locking rear wheels for busy providers on the move. It is designed to aid staff in easily transporting Tablo across the hospital.
TabloCart can be configured with the option that best meets your needs:
- Storage drawer to reduce trips to the supply room for staff on the go.
- Prefiltration to help remove sediment and minerals from supply water before it enters Tablo. This option also features a booster pump to increase incoming water pressure.
Tablo Hemodialysis System Technical Specifications
Treatment specifications
Blood flow rate
Up to 400 mL/min
Extracorporeal circuit volume
140 mL (excluding dialyzer)
Maximum ultrafiltration rate
2,000 mL/hour
UF accuracy for DFR ≤ 100 mL/min
+/- 2% UF Rate + 25 mL/hr
UF accuracy for DFR > 100 mL/min
+/- 2% UF rate + 40 mL/hr
Dialysate flow rate
PRO+: 50-300 mL/min
Std.: 100-300 mL/min
Dialysate preparation
Standard 45X proportioning
Dialysate concentrates
Bicarbonate and acetate/citrate acid
Dialysis fluid potassium (K)
0K, 1K, 2K, 3K
Dialysis fluid calcium (Ca)
0, 1.0, 1.5, 1.75, 2.0, 2.25, 2.5, 2.75. 3.0, 3.25, 3.5 Ca
Sodium setting
130-145 mEq/L
Total buffer setting
30-40 mEq/L
Dialysis fluid temperature
35-38 °C
Dialyzers
Commercially available high-flux dialyzers
Treatment duration
PRO+: 5 min-24 hrs
Std.: 5 min-12 hrs
Treatment modalities
IHD
Intermittent hemodialysis
SLED/SLEDD
Sustained low efficiency dialysis
PIRRT
Prolonged intermittent renal replacement therapy
UF
Isolated ultrafiltration
Treatment features
Saline flush
Automatic fluid removal adjustment with manual and scheduled options
Saline bolus
Automatic with volume tracking
Blood return
Automated and adjustable rate
Blood pressure
Integrated blood pressure cuff
Wireless connectivity
Two-way data transfer
Prime time
8 min
Maintenance features
Disinfection
Automated daily heat disinfection
Full and quick chemical disinfection cycles
Filter replacements
Individually replaceable by user
Water specifications
Input water source
EPA primary or secondary standards for drinking water
Incoming temperature
5-32 °C
Incoming pressure
30-80 PSI
Filtration
Integrated sediment, carbon, RO, ultrafilter
Outputs purified water
AAMI standards met
Physical specifications
Dimensions
35.2"H x 17.7"W x 26.9"D
Dry weight
195 lbs/88kg
